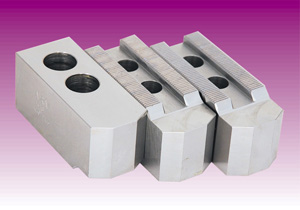

Soft Jaw for Hitachi Hydraulic/Air Chuck Hitachi-6 (Steel/Aluminium) |
| HITACHI-6 H34 | HITACHI-6 H60 |
|
|
|
| Custom Soft Jaw is also available (Application form) |
|
|
 |
 |
| Hitachi Steel Soft Jaw HITACHI-6 H34 | |||||||||||
 |
| Size chart HITACHI-6 H34 | |||||||||||
| A | B | H | D | E | F | G | M | I | J | K | S/P |
| 80 | 30 | 34 | 11 | 3.5 | 41 | 25 | M8 | 18 | 3.7 | 12 | 1.5 |
| Hitachi Steel Soft Jaw HITACHI-6 H60 | |||||||||||
|
| Size chart HITACHI-6 H60 | |||||||||||
| A | B | H | D | E | F | G | M | I | J | K | S/P |
| 80 | 30 | 60 | 11 | 3.5 | 41 | 25 | M8 | 18 | 3.7 | 12 | 1.5 |
| Hitachi Aluminium Soft Jaw AL HITACHI-6 H34 | |||||||||||
|
| Size chart AL HITACHI-6 H34 | |||||||||||
| A | B | H | D | E | F | G | M | I | J | K | S/P |
| 80 | 30 | 34 | 11 | 3.5 | 41 | 25 | M8 | 18 | 3.7 | 12 | 1.5 |
| Hitachi Aluminium Soft Jaw AL HITACHI-6 H60 | |||||||||||
|
| Size chart AL HITACHI-6 H60 | |||||||||||
| A | B | H | D | E | F | G | M | I | J | K | S/P |
| 80 | 30 | 60 | 11 | 3.5 | 41 | 25 | M8 | 18 | 3.7 | 12 | 1.5 |
| Custom Soft Jaws are available (Application form) |
| Any question, inquiries are highly welcomed. |
 | |
