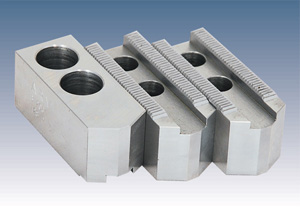

Soft Jaw for Kitagawa Hydraulic/Air Chuck B-205 (Steel/Aluminium) |
| B-205 H25 | B-205 H40 |
| B-205 H60 | AL B-205 H25 |
| Custom Soft Jaw is also available (Application form) |
 |
 |
| Kitagawa Steel Soft Jaw B-205 H25 | |||||||||||
 |
| Size chart B-205 H25 | |||||||||||
| A | B | H | D | E | F | G | M | I | J | K | S/P |
| 54 | 23 | 25 | 10 | 4 | 28 | 14 | M8 | 7.5 | 1.5 | 5 | 1.5 |
| Kitagawa Steel Soft Jaw B-205 H40 | |||||||||||
|
| SIze chart B-205 H40 | |||||||||||
| A | B | H | D | E | F | G | M | I | J | K | S/P |
| 54 | 23 | 40 | 10 | 4 | 28 | 14 | M8 | 7.5 | 1.5 | 5 | 1.5 |
| Kitagawa Steel Soft Jaw B-205 H60 | |||||||||||
|
| Size chart B-205 H60 | |||||||||||
| A | B | H | D | E | F | G | M | I | J | K | S/P |
| 54 | 23 | 60 | 10 | 4 | 28 | 14 | M8 | 7.5 | 1.5 | 5 | 1.5 |
| Kitagawa Aluminium Soft Jaw AL B-205 H25 | |||||||||||
|
| Size chart AL B-205 H25 | |||||||||||
| A | B | H | D | E | F | G | M | I | J | K | S/P |
| 54 | 23 | 25 | 10 | 4 | 28 | 14 | M8 | 7.5 | 1.5 | 5 | 1.5 |
| Custom Soft Jaws are available (Application form) |
| Any question, inquiries are highly welcomed. |
 | |
