4. Procedure of swaging

How to make rigging wire rope with ARM Aluminum Sleeves

Item No
Procedure
1.Cut wire ropes
HSC-23
HSC-350
HSC-600
HSC-600BB
HS-1000
HS12-MH100
HS12-100V
Cut wire ropes
with wire rope cutters
(RC-450,etc)
2.Pass the rope
through the sleeve
3.turn the rope
as diagram
4.make a rope ring
in certain size
5.Swage
(Swage
confirm the proper way of swaging)
HSC=23
HSC-350
HSC-600
HSC-600BB
HS-1000
HS12-MH100
HS12-100V
6.Number of swaging places
HSC=23

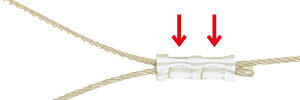

OS-1A,1B 3places swaging
HSC-350
HSC-600
HSC-600BB
HS-1000
HS12-MH100
HS12-100V
OS-1A,1B 2places swaging
OS-2A - 12A 3places swaging
7.Confirm swaging
HSC=23
HSC-350
HSC-600
HSC-600BB
HS-1000
HS12-MH100
HS12-100V
