- □ Hand Swagers are specialised tools to make rigging wire ropes.
- □ HSC-350,600,600BB has cutting and swaging function ※HS-1000 swaging only.
- □ HSC-23 has functions of cutting,swaging and confirm swaging.
- □ ARM-brand oval sleeves and swagers are designed to be used together.
- □ For large volume of swaging work, bench type HSC-600BB,HS-1000BB higly recommended.
HSC-600BB / HS-1000BB /
Specification
HSC-23
HSC-350
HSC-600
HSC-600BB
HS-1000
HS-1000BB
- □ Blades are dropforged and endurance highly guaranteed
- □ Easy process to make rigging wire ropes with ARM aluminium oval sleeves
- □ ARM-brand oval sleeves and swagers are designed to be used together
- □ These swagers are all manufactured,designed by ARM Sangyo and Made in Japan products

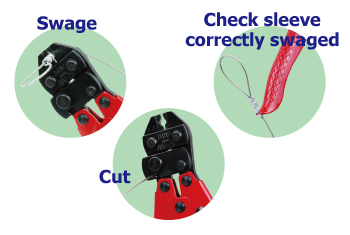

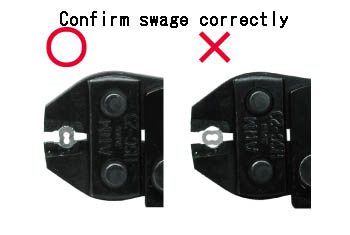

"How to swage sleeves" "check sleeves correctly swaged" Go!! ⇒
↓↓↓↓↓ Confirm the products specification with this chart↓↓↓↓↓
↓↓↓↓↓ Confirm the products specification with this chart↓↓↓↓↓
| Item No |
ARM Oval Sleeve |
wire rope dia mm,inch |
Hole No |
pcs per bag |
|---|---|---|---|---|
| OS-1A |  |
1.5,1/16" |  |
30 |
| OS-1B | 2.0,5/64" | 30 | ||
| OS-2A |  |
2.5,3/32" |  |
20 |
| 20 | ||||
| OS-3A |  |
3.0,1/8" |  |
20 |
| OS-3B | 3.5,- | 20 | ||
| OS-4A |  |
4.0,5/32" |  |
20 |
| OS-5A |  |
5.0,3/16" |  |
20 |
| OS-6A |  |
6.0,1/4" |  |
20 |
| OS-8A |  |
8.0,5/16" |  |
20 |
| Item No | Safety load 2 wire ropes |
||
|---|---|---|---|
 |
 |
 |
|
| OS-1A | 56kg | 54kg | 48kg |
| OS-1B | 96kg | 92kg | 82kg |
| OS-2A | 152kg | 148kg | 132kg |
| OS-2B | 182kg | 176kg | 158kg |
| OS-3A | 220kg | 212kg | 190kg |
| OS-3B | 280kg | 270kg | 242kg |
| OS-4A | 282kg | 272kg | 244kg |
| OS-5A | 446kg | 430kg | 386kg |
| OS-6A | 556kg | 536kg | 480kg |
| OS-8A | 990kg | 956kg | 856kg |
| Item No | wire rope destruction load |
tool | |||
|---|---|---|---|---|---|
| HSC -23 ※1 |
HSC -350 |
HSC -600 HSC -600BB |
|||
| OS-1A | 210kg |  |
○ | ○ | ○ |
| OS-1B | 330kg | ○ | ○ | ○ | |
| OS-2A | 519kg | × | ○ | ○ | |
| OS-2B | 630kg | × | ○ | ○ | |
| OS-3A | 698kg | × | ○ | ○ | |
| OS-3B | 1,001kg | × | ○ | ○ | |
| OS-4A | 1,204kg | × | × | ○ | |
| OS-5A | 1,731kg | × | × | ○ | |
| OS-6A | 1,975kg | HS-1000 HS-1000BB※2 |
|||
| OS-8A | 3,284kg | HS-1000 HS-1000BB※2 |
|||
 Safety issues |
・ARM-brand Sleeves and swagers are designed to be used together (ARM Hand Swagers and for ARM Oval Sleeves) ・We will not guarantee the use of (non-ARM) brand sleeves/swagers with our products. ・Follow the safety issue and the usage instruction for hanging wire ropes. ・Always retract vinyl-sheathing before proceeding to swage vinyl-sheathed wire ropes. |
|---|

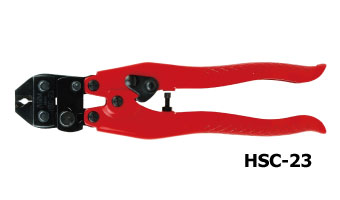

Hand Swager HSC-23 (for aluminum oval sleeves) (230mm)
- □ Specialised in swaging specific small diameter wire ropes
- □ wire rope dia(mm,inch):1.5mm ,1/16"/2.0mm,5/64"
- □ Cutting capacity of wire ropes:2.0mm 5/64"
- □ Refer to the specific oval sleeve technical data for detailed information relating to safety loads.

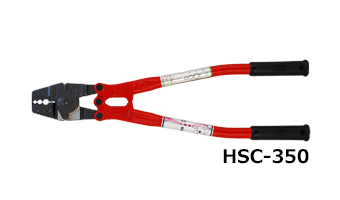

Hand Swager HSC-350 (for aluminum oval sleeves) (350mm)
- □ wire rope dia(mm,inch):1.5mm,1/16"/2.0mm,5/64"/2.5mm,3/32"/3.0mm,1/8"/3.5mm,-/
- □ Cutting capacity of wire ropes:3.5mm 1/8""
- □ Select appropriate sleeves according to the wire rope diameter used

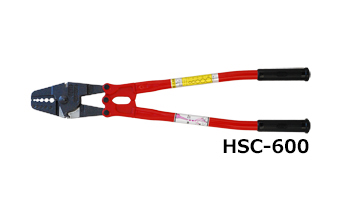

Hand Swager HSC-600 (for aluminum oval sleeves) (600mm)
- □ wire rope dia(mm,inch):1.5mm,1/16"/2.0mm,5/64"/2.5mm,3/32"/3.0mm,1/8"/3.5mm,-/4.0mm,5/32"/5.0mm,3/16"/
- □ Cutting capacity of wire ropes:5.0mm 3/16"
- □ Select appropriate sleeves according to the wire rope diameter used
| Item No | Size mm |
Overall length mm |
wire rope diameter mm,inch |
weight kg |
|---|---|---|---|---|
| HSC-600 | 600 | 645 | (1.5,1/16")(2.0,5/64")(2.5,3/32")(3.0,1/8")(3.5,-)(4.0,5/32")(5.0,3/16") | 2.7 |
| ARM Aluminum Oval Sleeve for HSC-600 | ||||||||
|---|---|---|---|---|---|---|---|---|
| Item No | OS-1A | OS-1B | OS-2A | OS-2B | OS-3A | OS-3B | OS-4A | OS-5A |
| Wire rope dia (mm,inch) |
1.5 1/16" |
2.0 5/64" |
2.5 3/32" |
3.0 1/8" |
3.5 -- |
4.0 5/32" |
5.0 3/16" |
|

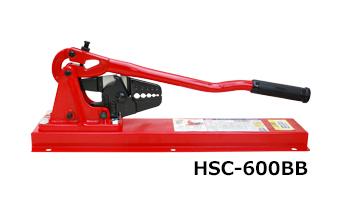

Hand Swager Bench-type HSC-600BB
- □ Suitable for large amount of swaging work
- □ wire rope dia(mm,inch):1.5mm,1/16"/2.0mm,5/64"/2.5mm,3/32"/3.0mm,1/8"/3.5mm,-/4.0mm,5/32"/5.0mm,3/16"/
- □ Cutting capacity of wire ropes:5.0mm 3/16"
- □ Select appropriate sleeves according to the wire rope diameter used
| Item No | Size mm |
Overall length mm |
wire rope diameter mm,inch |
weight kg |
|---|---|---|---|---|
| HSC-600BB | 600 | 540 | (1.5,1/16")(2.0,5/64")(2.5,3/32") (3.0,1/8")(3.5,-)(4.0,5/32") (5.0,3/16") |
5.2 |
| ARM Aluminum Oval Sleeve for HSC-600BB | ||||||||
|---|---|---|---|---|---|---|---|---|
| Item No | OS-1A | OS-1B | OS-2A | OS-2B | OS-3A | OS-3B | OS-4A | OS-5A |
| Wire rope dia (mm,inch) |
1.5 1/16" |
2.0 5/64" |
2.5 3/32" |
3.0 1/8" |
3.5 -- |
4.0 5/32" |
5.0 3/16" |
|

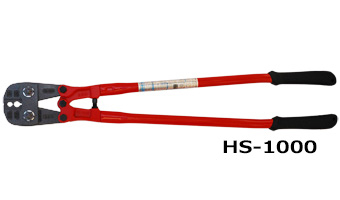

Hand Swager HS-1000

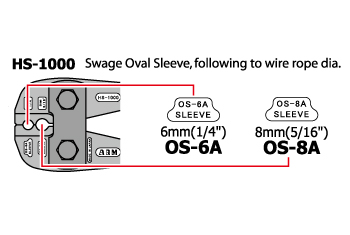

- □ wire rope dia(mm,inch)(mm):6.0mm,1/4"/8.0mm,5/16"
- □ No function of cutting wire ropes
- □ Select appropriate sleeves according to the wire rope used

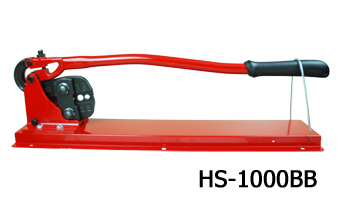

Hand Swager Bench type HS-1000BB
- □ wire rope dia(mm,inch)(mm):6.0mm,1/4"/8.0mm,5/16"
- □ No function of cutting wire ropes
- □ Select appropriate sleeves according to the wire rope diameter used
ARM Oval Sleeves
Swager Aluminum
ARM Stainless Sleeves
