2. Pipe Wrench
ARM Pipe wrench

Pipe Wrench

  • □ Drop-Forged construction
  • □ Pipe scale on jaw allows easy setting
  • □ Specially heat-treated in oxygen-free atmosphere for extra strength
　

Specification

Pipe wrench PWPipe Wrench
PW- Steel Handle
Aluminum pipe wrench PW-ALAluminum handle
Pipe Wrench PW-AL
Japan Industrial Standard Certificate (JIS B 4606 JQ0307055)
→
  •

PW-Steel handle

  • □Made in Japan
  • □Drop-Forged construction,pipe scale on jaw allows easy setting
  • □Specially heat-treated in oxygen-free atmosphere for extra strength
JIS standard

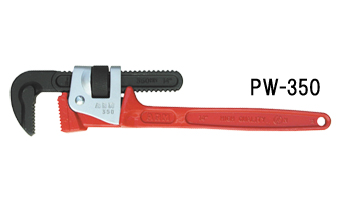

Pipe Wrench PW-350
Item No Size
mm		 Applicable Outer
Diameter
(Inch)		 Maximum diameter
(mm)
 Weight
(kg)
pipe elbow
PW-150 150 3/4 3/4 33 0.2
PW-200 200 1 1/4 1 45 0.4
PW-250 250 2 1 1/2 60 0.6
PW-300 300 2 2 70 1.0
PW-350 350 2 1/2 2 80 1.3
PW-450 450 3 2 1/2 90 2
PW-600 600 3 1/2 3 105 3.4

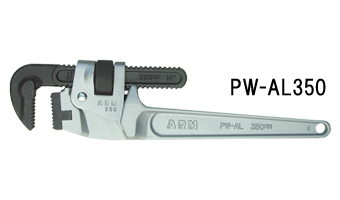

PW-AL Aluminum handle

  • □ Made in Japan
  • □ Aluminium handle, combined with drop-forged steel upper jaw provides exceptional strength and load capability
  • □ Lightweight: Ideal for working above-head, pipe scale major printed on upper jaw
Japan Industrial Standard Certificate
Pipe wrench Aluminum
Item No Size
mm		 Applicable Outer
Diameter
(Inch)		 Maximum diameter
(mm)
 Weight
(kg)
pipe elbow
PW-AL250 250 1 1/2 1 1/4 50 0.5
PW-AL300 300 2 1 1/2 60 0.8
PW-AL350 350 2 2 70 1.0
PW-AL450 450 2 1/2 2 80 1.6
PW-AL600 600 3 2 1/2 90 2.6
