Gear Pullers
- □ Essential tools to pull the gears from the main machinery, cars, etc.
- □ 2 different gear pullers such as 2-arms and 3 arms.
- □ Drop forged construction ensures endurance of these tools.
Specifications
- □ guarantees smooth movement of Gear Pullers screw.
- □ Drop-forging process guarantees endurance of the tool.
- □ Made by ARM Sangyo and Made in Japan products.
Standard | holding a wider/deeper gear | |||
---|---|---|---|---|
By changing the arms connection, Gear puller can hold a wider/ deeper gear than that of standard connected one. By connect the arms upsidedown for GP-75,GP3-75, these can hold wider gear than that of standard connected gear pullers. |
||||
Item No | diameter of gears dia A mm |
depth of gears depth B mm |
diameter of gears dia C mm |
depth of gears depth D mm |
GP-75(B) /GP3-75 |
45-75 | 45 | 55-80 | 35 |
GP-100(B) /GP3-100 |
50-100 | 55 | 30-60 | 75 |
GP-125(B) /GP3-125 |
55-125 | 80 | 50-90 | 100 |
GP-150(B) /GP3-150 |
60-150 | 95 | 55-100 | 125 |
GP-200 /GP3-200 |
80-200 | 130 | 75-150 | 145 |
GP-250 /GP3-250 |
100-250 | 150 | 90-190 | 170 |
GP-300 /GP3-300 |
120-300 | 160 | 100-250 | 210 |
holding a wider/deeper gear | ||||
---|---|---|---|---|
By changing the arms connection, Gear puller can hold a wider/ deeper gear than that of standard connected one. By connecting the arms upsidedown for GP-75,GP3-75, these can hold wider gear than that of standard connected gear pullers. |
||||
Item No | diameter of gears dia A mm |
depth of gears depth B mm |
diameter of gears dia C mm |
depth of gears depth D mm |
GP-75(B) /GP3-75 |
55-80 | 35 | ||
GP-100(B) /GP3-100 |
30-60 | 75 | ||
GP-125(B) /GP3-125 |
50-90 | 100 | ||
GP-150(B) /GP3-150 |
55-100 | 125 | ||
GP-200 /GP3-200 |
75-150 | 145 | ||
GP-250 /GP3-250 |
90-190 | 170 | ||
GP-300 /GP3-300 |
100-250 | 210 |

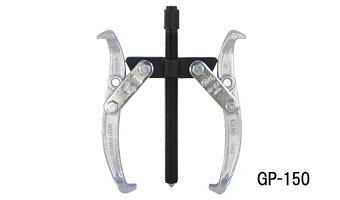

Gear Puller 2-arms
- □ Drop-forged construction ensures endurance for use.!
Item No | Size (mm) |
load (tonf) |
weight (kg) |
---|---|---|---|
GP-75(B) | 75 | 2 | 0.4 |
GP-100(B) | 100 | 4 | 0.8 |
GP-125(B) | 125 | 5 | 1.2 |
GP-150(B) | 150 | 6 | 1.8 |
GP-200 | 200 | 10 | 3.8 |
GP-250 | 250 | 12 | 5.3 |
GP-300 | 300 | 15 | 8.2 |
※(B)=Blister packed

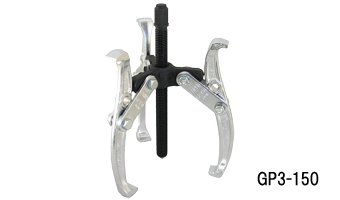

Gear Puller 3-arms
- □ 3-arms gear puller gives you stability of pulling work.
- □ Arms are all made by drop-forged. endurance is highly guaranteed.
Item No | Size (mm) |
load (tonf) |
weight (kg) |
---|---|---|---|
GP3-75 | 75 | 3 | 0.5 |
GP3-100 | 100 | 6 | 1.1 |
GP3-125 | 125 | 7.5 | 1.6 |
GP3-150 | 150 | 9 | 2.4 |
GP3-200 | 200 | 15 | 5.5 |
GP3-250 | 250 | 18 | 7.6 |
GP3-300 | 300 | 22 | 11.0 |
