3. ARM Oval Sleeves Aluminum
Aluminum oval sleeves

ARM Oval Sleeve (aluminum)

  • □ These aluminum sleeves are specialised sleeves to make rigging wire ropes.
  • □ Select appropriate sleeves according to the wire rope diameter used(from φ1.5mm-12mm)
  • □ ARM-brand oval sleeves and swagers are designed and manufactured to be used together.

Specification

Aluminum oval sleeves OS-1A-5AARM Oval Sleeves
OS-1A-5A (aluminum)
Aluminum oval sleeves OS-6A-12AARM Oval Sleeves
OS-6A-12A (aluminum)
Stainless Sleeves
Go to ARM Stainless Sleeves!!
  • □ Making rigging wire ropes easity at any place
  • □ In order to avoid any incident, use ARM Oval Sleeves and Hand Swager together. Combination use of these is essential.
  • □ The example of the use : hanging notices, pictures, electric lights, prevention of falling from high place.
  • □ These sleeves are made by ARM Sangyo, and Made in Japan products.
  • □ Products quality is highly guaranteed.
"How to swage sleeves" "check sleeves correctly swaged"  Go!! ⇒



Safety issues		 ・ARM-brand oval sleeves and swagers are designed and manufactured to be used together.
・We will not guarantee the use of other (non-ARM) brand sleeves/swagers with our products, and strongly advise against it.
・Follow the safety issue and the usage instruction for hanging wire ropes.
・Always retract vinyl-sheathing before proceeding to swage vinyl-sheathed wire ropes.


  ↓↓↓↓↓ Confirm the products specification with this chart↓↓↓↓↓
Item No ARM
Oval
Sleeve
 wire
rope
dia
mm,inch
 Hole
No
 pcs
per
bag
OS-1A 1.5,1/16" 30
OS-1B 2.0,5/64" 30
OS-2A 2.5,3/32" 20
20
OS-3A 3.0,1/8" 20
OS-3B 3.5,-- 20
OS-4A 4.0,5/32" 20
OS-5A 5.0,3/16" 20
Item No Safety load
2 wire ropes
OS-1A 56kg 54kg 48kg
OS-1B 96kg 92kg 82kg
OS-2A 152kg 148kg 132kg
OS-2B 182kg 176kg 158kg
OS-3A 220kg 212kg 190kg
OS-3B 280kg 270kg 242kg
OS-4A 282kg 272kg 244kg
OS-5A 446kg 430kg 386kg
Item No wire rope
destruction load

 tool
HSC
-23		 HSC
-350		 HSC
-600
HSC
-600BB
OS-1A 210kg ○ ○ ○
OS-1B 330kg ○ ○ ○
OS-2A 519kg × ○ ○
OS-2B 630kg × ○ ○
OS-3A 698kg × ○ ○
OS-3B 1,001kg × ○ ○
OS-4A 1,204kg × × ○
OS-5A 1,731kg × × ○

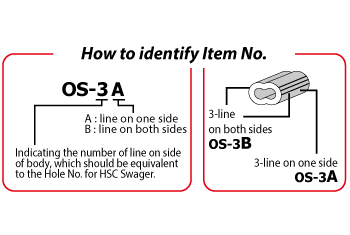

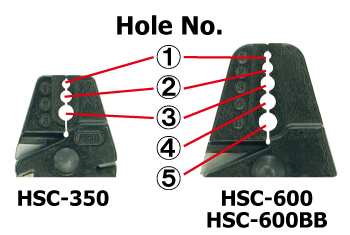

How to identify oval sleeves HSC hole number

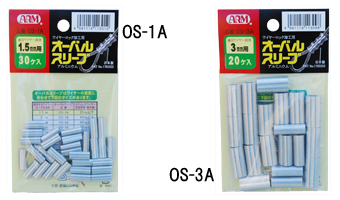

ARM Oval Sleeves aluminum from dia 1.5mm(1/16") to 5.0mm(3/16")

 Go to Stainless Sleeve Swagers !!  ⇒


Aluminum oval sleeve 1.5-5.0
Item No Length
mm		 pcs
per a bag		 wire rope diameter
mm,inch		 weight
g
OS-1A 16 30 1.5, 1/16 37
OS-1B 16 30 2.0, 5/64" 31
OS-2A 24 20 2.5, 3/32" 58
OS-2B 24 20 -- 50
OS-3A 24 20 3.0, 1/8" 110
OS-3B 24 20 3.5, -- 100
OS-4A 26 20 4.0, 5/32" 130
OS-5A 27 20 5.0, 3/16" 180



↓↓↓   Confirm the products specification with this chart   ↓↓↓
Item No ARM
Oval
Sleeve
 wire
rope
dia
mm,inch
 Hole
/Dies
No
 pcs
per
bag
OS-6A 6.0 OS-6D 20
OS-8A 8.0 OS-8D 20
OS-9A 9.0 OS-9D&
10D		 20
OS-10A 10.0 OS-9D&
10D		 20
OS-12A 12.0 OS-12D 20
Item No Safety load
2 wire ropes
OS-6A 556kg 536kg 480kg
OS-8A 990kg 956kg 856kg
OS-9A 1,250kg 1,206kg 1,082kg
OS-10A 1,546kg 1,494kg 1,338kg
OS-12A 2,226kg 2,150kg 1,926kg
Item No wire rope
destruction load

 tool
HS
-1000		HS12
-MH100
HS12
-100V
OS-6A 1,975kg ○ ○
OS-8A 3,284kg ○ ○
OS-9A 4,018kg × ○
OS-10A 5,365kg × ○
OS-12A 7,456kg × ○
diagram of HS-1000 Dies of HS-12

ARM Oval Sleeves aluminum from dia 6.0mm(1/4") to 12mm(1/2")

  Go to Stainless Sleeve Swagers !!  ⇒

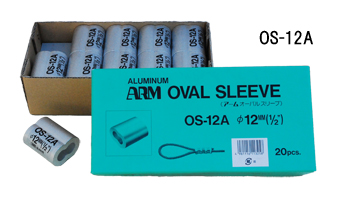

Aluminum oval sleeve OS-12A
Item No Length
mm		 pcs
per a box		 wire rope diameter
mm,inch		 weight
g
OS-6A 32 20 6.0, 1/4" 300
OS-8A 35 20 8.0, 5/16" 480
OS-9A 42 20 9.0, 3/8" 930
OS-10A 42 20 10.0, 13/32" 890
OS-12A 48 20 12.0, 1/2" 1,780
