3. Wire Rope Cutters
wire rope cutters

Wire Rope Cutters

  • □ A sharp cutting tool, suitable for even the thinnest of wire ropes, which cuts cleanly without leaving behind splayed edges.
　

Specification

wire rope cutter RC-typeWire Rope Cutters
RC-type
wire rope cutter WR-typeWire Rope Cutters
WR-type
wire rope cutter spare bladeWire Rope Cutters
Spare blade
  • □ Specialised in cutting steel wire ropes, stainless wire ropes.
  • □ 2 types of cutters, RC-type and WR-type. Both cutters cut cleanly without leaving behind splayed edges.
  • □ Blades, flames are all dropforged, endurance is highly guaranteed.
  • □ These cutters are Made by ARM Sangyo, Made in Japan.

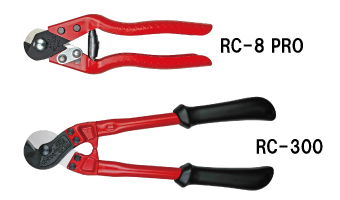

Wire rope cutters (RC-type)

  • □ A sharp cutting tool, suitable for even the thinnest of wire ropes, which cuts cleanly without leaving behind splayed edges.
  • □ Blades are all dropforged and hardly chipped.
  • □ Good shaped grips ensures you handling the tool easily.
wire rope cutter RC-type
Item No Size mm
mm		 Cutting capacity wire rope (mm) Weight
kg
Fiber core Stainless steel
RC-8 PRO 200 5mm 5mm (IWRC7x7) 0.3
RC-300 300 8mm 8mm (IWRC7x19) 0.7
RC-450 450 12mm 10mm (IWRC7x19) 1.5
RC-800 800 16mm 14mm (IWRC7x19) 3.9

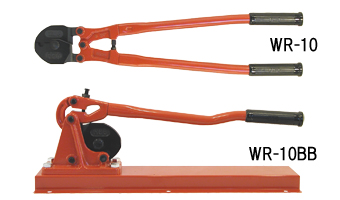

Wire Rope Cutters (WR-type)

  • □ Clear cutting edge of wire ropes
  • □ Select the proper size of WR-type cutters, according to diameter of wire ropes.
  • □ For large number of cutting wire ropes, Bench type WR-10BB is the most suitable.
  • □ Blades and flame parts are all dropforged, and endurance is highly guaranteed.
wire rope cutter WR-type
Item No Size mm
mm		 Cutting capacity wire rope (mm) Weight
kg
Fiber core Stainless steel
WR-6 350 6mm 6mm (IWRC7x19) 0.9
WR-10 600 10mm 10mm (IWRC7x19) 2.3
WR-14 750 14mm 14mm (IWRC7x19) 3.6
WR-16 900 16mm 16mm (IWRC7x19) 5.3
WR-20 1050 20mm 16mm (IWRC7x19) 8.2
WR-10BB 600 10mm 10mm (IWRC7x19) 5.0

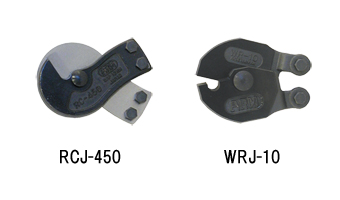

Spare blades of wire rope cutters

  • □ RC-type and WR-type
  • □ Comes with connection bolts and nuts
wire rope cutter-spare blade
Item No Suitable products
(Item No)		 Weight
kg
RCJ-450

RC-450

 0.5
RCJ-800 RC-800 1.3
WRJ-6 WR-6 0.3
WRJ-10 WR-10・WR-10BB 0.7
WRJ-14 WR-14 1.2
WRJ-16 WR-16 1.6
WRJ-20 WR-20 2.7
