3. Stainless Sleeve Hand Swagers
Stainless Sleeve Hand Swager

Stainless Sleeve Hand Swagers

  • □ These swagers are to produce rigging wire ropes with ARM Stailess Sleeves.　
  • □ Due to the skeeves' material, less galvanic corrosion is insured.
  • □ Hanging strength of swaged wire rope and ARM Stailess Sleeve is much guaranteed. See the chart below.
  • □ For mass production of wire rope slings with Stainless Sleeve, Bench types are much appropriated.
    　
    　(SS-HSC3BB / SS-HS5BB / SS-HS6BB)

Stainless Sleeve Hand Swagers

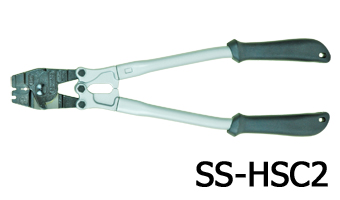

Stainless sleeve swagers SS-HSC2SS-HSC2
mm,inch sleeves available
swage Cap:2.0mm,1/16"
Stainless sleeve swagers SS-HSC3SS-HSC3
mm,inch sleeves available
swage Cap:3.0mm,1/8"

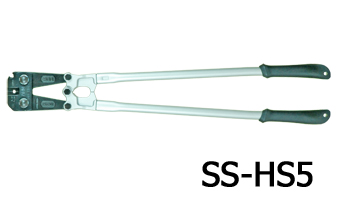

Stainless sleeve swagers SS-HS5SS-HS5
Swaging cap:4.0,5.0mm

Inch:5/32"3/16"
Stainless sleeve swagers SS-HS6SS-HS6
Swaging cap:6.0mm

Inch:7/32"

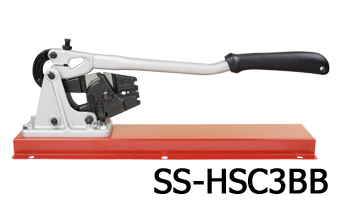

Stailess sleeve swagers bench type SS-HSC3BBSS-HSC3BB
mm,inch sleeves available
swage Cap:3.0mm,1/8"
Stailess sleeve swagers bench type SS-HS5BBSS-HSC5BB
Swaging cap:4.0,5.0mm

Inch:5/32"3/16"

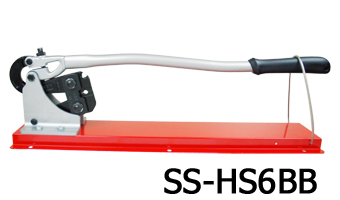

Stailess sleeve swagers bench type SS-HS6BBSS-HSC6BB
Swaging cap:6.0mm

Inch:7/32"
Hand Swager for aluminum oval sleeveGo to Hand Swager (for aluminum sleeve)

  • □ Head part,flame part are all dropforged. Endurance of the tool guaranteed
  • □ 3 functions: Cut,Swage and Check SS-HSC2/SS-HSC3/SS-HSC3BB
  • □ SS-HS5/SS-HS6/SS-HS5BB/SS-HS6BB can confirm the sleeve properly swaged
  • □ SS-HSC3BB/SS-HS5BB/SS-HS6BB are suitable for large volume of work.
  • □ Stainless Sleeve Swagers must be used with appropriate size of ARM Stainless Sleeve
  • □ Stainless Sleeve is less galvanic corrosion comapared to that of aluminum one.
How to make a rigging wire rope  Go !  ⇒

↓↓↓↓↓  Size and Safety load chart of ARM Stainless Sleeve↓↓↓↓↓
Item No ARM
Stainless
Sleeve
 wire
rope
dia

mm
inch		 Q'ty
(bag)
SS-1.5 1.5 10
SS-2.0 2.0 10
SS-3.0 3.0 10
SS-4.0 4.0 10
SS-5.0 5.0 10
SS-6.0 6.0 10
SS-1/16 1/16 10
SS-3/32 3/32 10
SS-1/8 1/8 10
SS-5/32 5/32 10
SS-3/16 3/16 10
SS-7/32 7/32 10
SS-1/4 1/4 10
Item No Safety load
using 2 wire ropes
SS-1.5 48kg
SS-2.0 82kg
SS-3.0 190kg
SS-4.0 244kg
SS-5.0 386kg
SS-6.0 480kg
SS-1/16 52kg
SS-3/32 99kg
SS-1/8 190kg
SS-5/32 260kg
SS-3/16 401kg
SS-7/32 540kg
SS-1/4 693kg
Item No Wire rope
destruction load
Using ARM
Stailess Sleeve
Swagers		 Item No
SS-
HSC
2		 SS-
HSC3
/3BB		 SS-
HS5
/5BB		 SS-
HS
6BB		 Hyd
tool
SS-1.5 212kg ○ ○ × × ○
SS-2.0 330kg ○ ○ × × ○
SS-3.0 731kg × ○ × × ○
SS-4.0 1,255kg × × ○ × ○
SS-5.0 1,898kg × × ○ × ○
SS-6.0 2,704kg × × × ○ ○
SS-1/16 269kg ○ ○ × × ○
SS-3/32 555kg × ○ × × ○
SS-1/8 822kg × ○ × × ○
SS-5/32 1208kg × × ○ × ○
SS-3/16 1683kg × × ○ × ○
SS-7/32 2349kg × × × ○ ○
SS-1/4 3100kg × × × × ○
Hand Swagers for Aluminum Oval Sleeves  Go!! ⇒



SS-HSC cut,swage, gauge SS-HSC swaging




Product Safety		 ・ARM-brand sleeves and swagers are designed and manufactured to be used together. (ARM Stainless Sleeve Swagers are for ARM Stainless Sleeve only.
・We will not guarantee the use of ther (non-ARM)brand sleeves/swagers with our products, and strongly advise against it.
・Refer t the specific sleeve technical data for detailed information relating to safety / destruction load.
・When swaging vinyle-sheathed wire rope, always retract sheathing to reveal wire rope before proceeding to swage. Otherwise, hanging strength can not be guaranteed.


Stainless Sleeve Hand Swagers (350mm)

  • □ Wire Rope Dia.in Capacity(mm):1.5/2.0,1/16"
  • □ Cutting capacity:2.0mm
  • □ Select appropriate ARM Stainless Sleeves following to wire rope diameter.
Hand Swagers for Aluminum Oval Sleeves  Go!! ⇒
stainless sleeve 350mm
Item No Size
mm		 Over all Length
mm		 Wire Rope dia
mm,inch		 Net Weight 1pce
kg
SS-HSC2 350 440 1.5/ 2.0, 1/16" 1.1


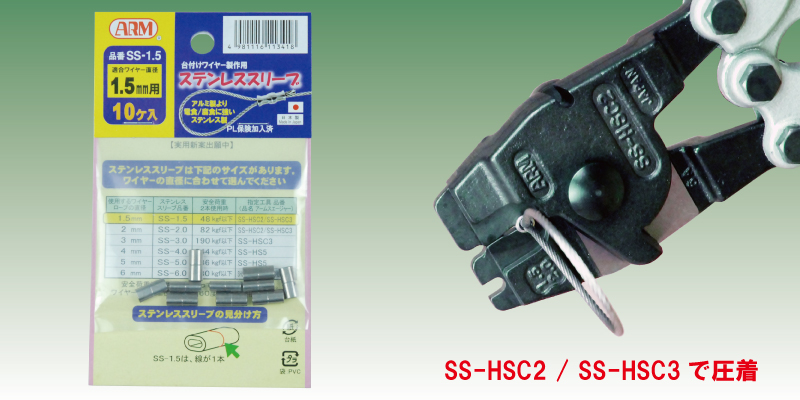

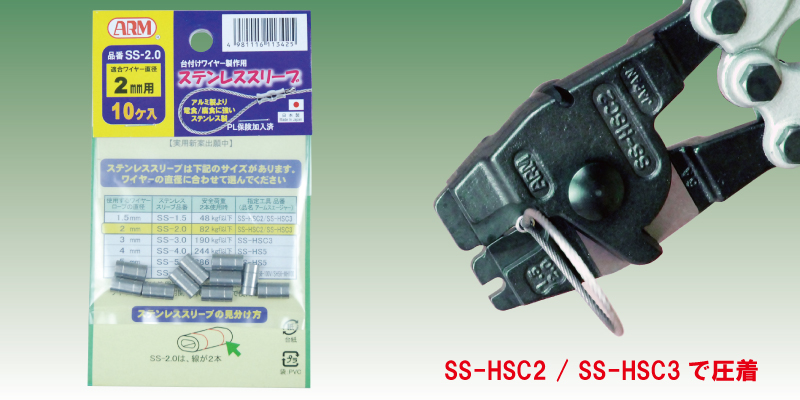

Stainless Sleeve with SS-HSC2
Item No. SS-1.5 SS-2.0 SS-1/16
Wire Rope
dia(mm,inch)		 1.5 2.0 1/16"

Stainless Sleeve Hand Swagers (600mm)

  • □ Wire Rope Dia.in Capacity(mm):1.5/2.0/3.0,(inch):1/16,3/32,1/8
  • □ Cutting capacity:3.0mm
  • □ Select appropriate ARM Stainless Sleeves following to wire rope diameter.
Hand Swagers for Aluminum Oval Sleeves Go!! ⇒
Stainless sleeve swager 600mm
Item No Size
mm		 Over all Length
mm		 Wire Rope dia
mm, inch		 Net Weight
kg
SS-HSC3 600 640 1.5/ 2.0/ 3.0, 1/16",3/32",1/8" 2.8


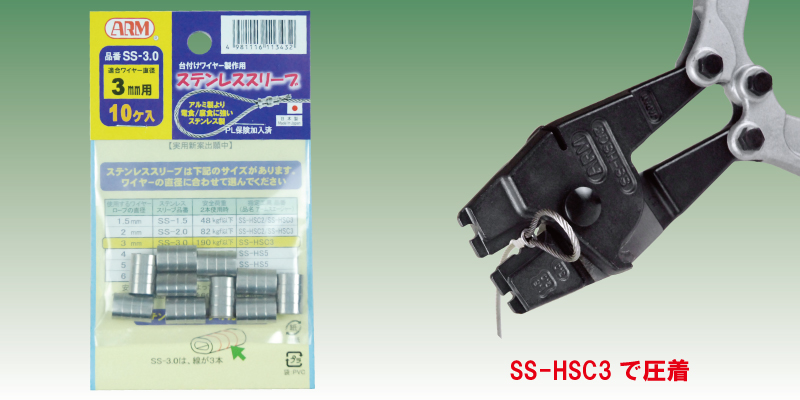

Stainless Sleeve with SS-HSC3
Item No SS-1.5 SS-2.0 SS-3.0 SS-1/16 SS-3/32 SS-1/8
Wire Rope
dia(mm)		 1.5 2.0 3.0 1/16" 3/32" 1/8"

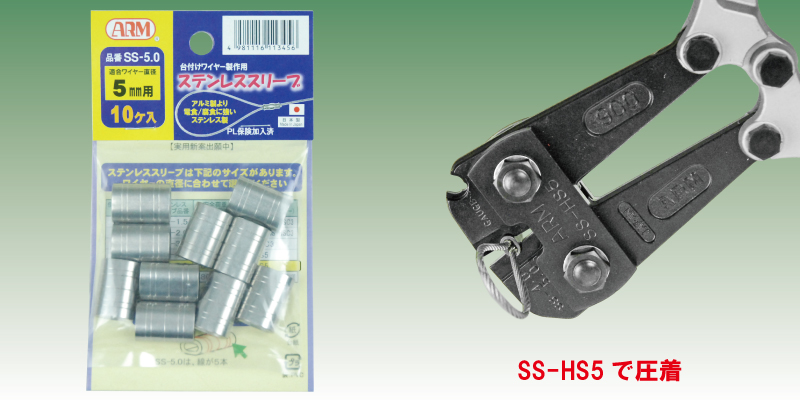

Stainless Sleeve Hand Swagers (900mm)

  • □ Wire Rope Dia.in Capacity (mm):4.0/5.0,5/32",3/16"
  • □ Select appropriate ARM Stainless Sleeves following to wire rope diameter.
  • □ No cutting function of wire rope
Hand Swagers for Aluminum Oval Sleeves Go!!  ⇒
Stainless sleeve swager 900mm
Item No Size
mm		 Over all Length
mm		 Wire Rope dia
mm,inch		 Net Weight
kg
SS-HS5 900 900 4.0/ 5.0,5/32",3/16" 5.2


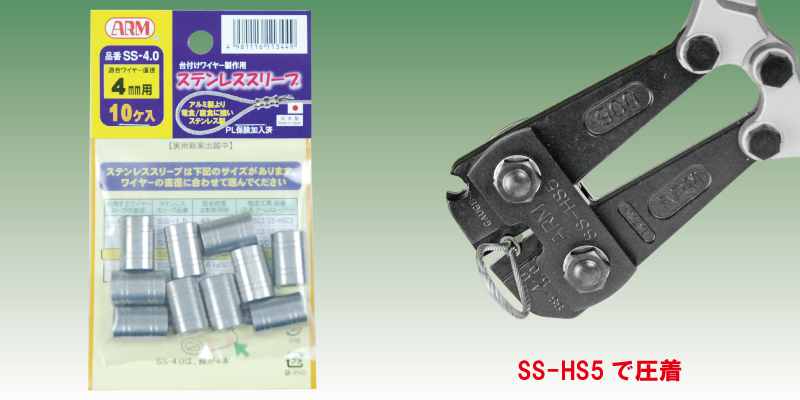

Stainless Sleeve with SS-HS5
Item No SS-4.0 SS-5.0 SS-5/32 SS-3/16
Wire Rope
dia(mm)(inch)		 4.0 5.0 5/32" 3/16"

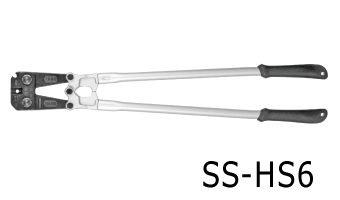

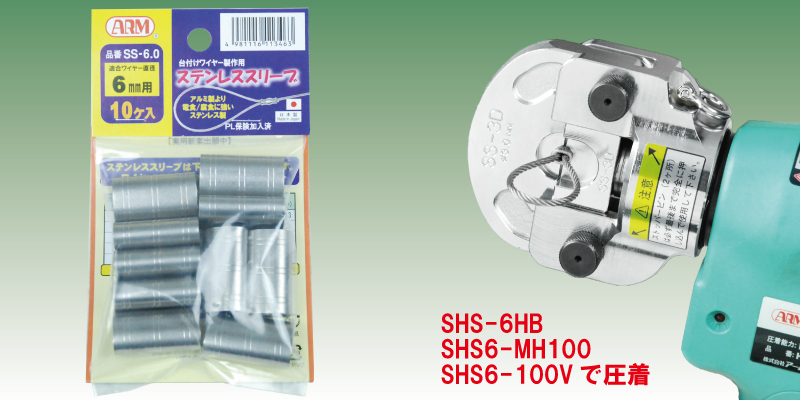

Stainless Sleeve Hand Swagers (900mm)

  • □ Wire Rope Dia.in Capacity (mm):6.0, (inch):7/32
  • □ Select appropriate ARM Stainless Sleeves following to wire rope diameter.
  • □ No cutting function of wire rope
Hand Swagers for Aluminum Oval Sleeves Go!! ⇒
Stainless sleeve swager 900mm
Item No Size
mm		 Over all Length
mm		 Wire Rope dia
mm,inch		 Net Weight
kg
SS-HS6 900 900 6.0,7/32" 5.2


Stainless Sleeve with SS-HS6
Item No SS-6.0 SS-7/32
Wire Rope
dia(mm)(inch)		 6.0 7/32"

Stainless Sleeve Hand Swagers Bench-type (600mm)

  • □ Wire Rope Dia.in Capacity(mm):1.5/2.0/3.0 (inch):1/16,3/32,1/8
  • □ Cutting capacity:3.0mm
  • □ Select appropriate ARM Stainless Sleeves following to wire rope diameter
Hand Swagers for Aluminum Oval Sleeves Go!! ⇒
Stainless sleeve swager 600mm
Item No Size
mm		 Over all Length
mm		 Wire Rope dia
mm,inch		 Net Weight
kg
SS-HSC3BB 600 540 1.5/ 2.0/ 3.0
1/16",3/32",1/8"		 5.5


Stainless Sleeve with SS-HSC3BB
Item No SS-1.5 SS-2.0 SS-3.0 SS-1/16 SS-3/32 SS-1/8
Wire Rope dia
(mm)(inch)		 1.5 2.0 3.0 1/16" 3/32" 1/8"

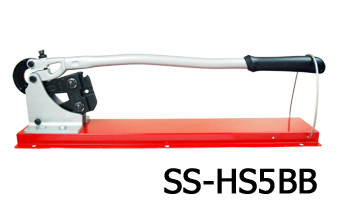

Stainless Sleeve Hand Swagers Bench-type (900mm)

  • □ Wire Rope Dia.in Capacity(mm):4.0/5.0 (inch):5/32,3/16
  • □ Select appropriate ARM Stainless Sleeves following to wire rope diameter.
  • □ No cutting function of wire rope
Hand Swagers for Aluminum Oval Sleeves Go!! ⇒
Stainless sleeve swager 900mm
Item No Size
mm		 Over all Length
mm		 Wire Rope dia
mm,inch		 Net Weight
kg
SS-HS5BB 900 820 4.0/ 5.0
5/32",3/16"		 10.1


Stainless Sleeve with SS-HS5BB
Item No SS-4.0 SS-5.0 SS-5/32 SS-3/16
Wire Rope dia
(mm)(inch)		 4.0 5.0 5/32" 3/16"

Stainless Sleeve Hand Swagers Bench-type (900mm)

  • □ Wire Rope Dia.in Capacity(mm):6.0
  • □ Select appropriate ARM Stainless Sleeves following to wire rope diameter.
  • □ No cutting function of wire rope
Hand Swagers for Aluminum Oval Sleeves Go!! ⇒
Stainless sleeve swager 900mm
Item No Size
mm		 Over all Length
mm		 Wire Rope dia
mm,inch		 Net Weight
kg
SS-HS6BB 900 820 6.0,7/32" 10.1


Appropriate stainless sleeve for SS-HS6BB
Item No SS-6.0 SS-7/32
Wire Rope dia
(mm)(inch)		 6.0 7/32"
