3. Cordless, Electric Swager
Cordles, Electric Swagers

Cordless, Electric, Hydraulic Swagers
(for aluminum oval sleeve)

  • □ These swagers are for making rigging wire ropes with aluminum oval sleeves.
  • □ Swaging capacity : dia 6mm to 12mm wire ropes.
  • □ Fiber Core wire rope is mush suitable for use.
  • □ Combination use with ARM Aluminum Oval Sleeve is essential.

SPecification of Cordless, Electric, Hydraulic Swagers.

Cordless SwagerCordless Swager
(aluminum oval sleeve)
Hydraulic SwagerHydraulic Swager
(aluminum oval sleeve)
Electric SwagerElectric Swager
(aluminum oval sleeve)
  • □ Battery : Li-ion battery
  • □ Output pressure is 11 tonf.
  • □ Head turns 180 degrees.
       (HS-12HB's head does not turn)
  • □ Can make rigging wire rope at any place.

  • □ Made by ARM Sangyo, Made in Japan.!
  •
Size chart of Cordless Swager HS12-Li120/230.

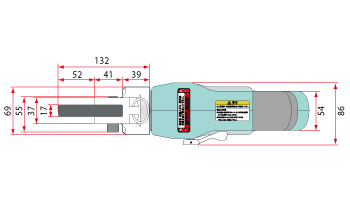

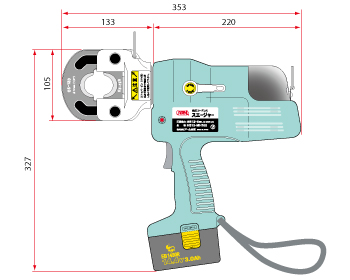

Cordless Swager size diagram 1 Cordless Swager size diagram 2
Size chart of Electric Swager HS12-120V,230V.

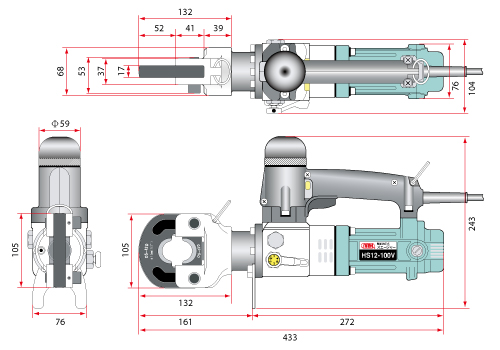

Electric Swager size diagram

Safety issues
 ・ARM-brand Sleeves and swagers are designed to be used together (ARM Hand Swagers and for ARM Oval Sleeves)
・We will not guarantee the use of (non-ARM)brand sleeves/swagers with our products.
・Follow the safety issue and the usage instruction for hanging wire ropes.
・Always retract vinyl-sheathing before proceeding to swage vinyl-sheathed wire ropes.
"How to swage sleeves" "check sleeves correctly swaged" Go!! ⇒
Item
No		 ARM
Oval
Sleeve
 wire
rope
dia
mm,inch
 Dies

 pcs
per
box
OS-6A 6.0 OS-6D 20
OS-8A 8.0 OS-8D 20
OS-9A 9.0 OS-9D&
10D		 20
OS-10A 10.0 OS-9D&
10D		 20
OS-12A 12.0 OS-12D 20
Item No Safety load
2 wire ropes
OS-6A 556kg
 536kg
 480kg
OS-8A 990kg
 956kg
 856kg
OS-9A 1,250kg
 1,206kg
 1,082kg
OS-10A 1,546kg
 1,494kg
 1,338kg
OS-12A 2,226kg
 2,150kg
 1,926kg
Item No wire rope
destruction load

 tool
HS
-1000		HS12-Li
HS-12HB
HS12-V
OS-6A 1,975kg ○ ○
OS-8A 3,284kg ○ ○
OS-9A 4,018kg × ○
OS-10A 5,365kg × ○
OS-12A 7,456kg × ○

Cordless Swager (for aluminum oval sleeves)

  • □ Swaging period of time:6 seconds
  • □ swaging times per fully charged battery
  • 　dia 6mm:500times / 8mm:390 /
       9mm:250 / 10mm:250 /
       12mm：160 /
  • □ Set includes
  • 　 Dies (OS-6D/OS-8D/OS-9D&10D/
       OS-12D) / Gauge / Shoulder Strap
  • 　 Wire rope cutter(dia12mm
       RC-450) / Screw driver(to replace die)
  • 　 Li-ion battery (BPL-2540):1 pce
       / Battery charger (BL0075G)

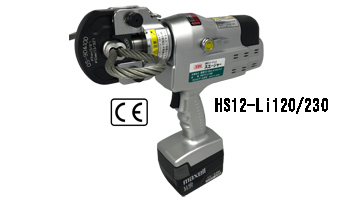

Cordless Swager
Item No Wire rope
diameter		 Output

pressure
tonf		 Weight

kg		 Packing

weight
kg
HS12-Li120/230 dia(mm)φ6,8,9,10,12
(6×24　JIS G3525)		 11tonf 6.2 15.6

Aluminum Oval Sleeves for
HS12-Li120/230
Item No OS-6A OS-8A OS-9A OS-10A OS-12A
Wire rope
dia		 6.0 8.0 9.0 10.0 12.0

content of the unit 1 content of the unit 2

Hydraulic Swager (for aluminum oval sleeves)

  • □ Set includes
  • 　 Dies(OS-6D/OS-8D/OS-9D&10D/
       OS-12D) / Gauge / Shoulder strap
  • 　 Wire rope cutter(dia12mm
       RC-450) / Screw driver(to replace die)

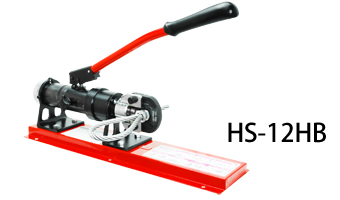

Hydraulic Swager
Item No Wire rope
diameter		 Output

pressure
tonf		 Weight

kg		 Packing

weight
kg
HS12-HB dia(mm)φ6,8,9,10,12
(6×24　JIS G3525)		 12tonf 15.5 25.1

Aluminum Oval Sleeves for
HS12-HB
Item No OS-6A OS-8A OS-9A OS-10A OS-12A
Wire rope
dia(mm)		 6.0 8.0 9.0 10.0 12.0

Electric Swager (for aluminum oval sleeves)

  • □ Swaging period of time:4 seconds
  • □ Set includes
  • 　Dies(OS-6D/OS-8D/
       OS-9D&10D/OS-12D) /
       Gauge / Shoulder strap
  • 　Wire rope cutter(dia12mm
        RC-450) / Screw driver(to replace die)

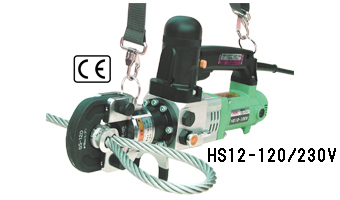

Electric swager
Item No Wire rope
diameter		 Output

pressure
tonf		 Weight

kg		 Packing

weight
kg
HS12
-120V,230V		 dia(mm)φ6,8,9,10,12
(6×24　JIS G3525)		 11tonf 9.0 19.5

Aluminum Oval Sleeves for
HS12-120V,230V
Item No. OS-6A OS-8A OS-9A OS-10A OS-12A
Wire rope
dia(mm)		 6.0 8.0 9.0 10.0 12.0

content of the unit 1 content of the unit 2
