Cordless, Electric, Hydraulic(hand operated) Stainless Sleeve Swager
- □ Making rigging wire ropes with ARM Stainless Sleeves.
- □ Less galvanic corrosion compared to that of aluminum sleeves.
- □ Hanging strength is guaranteed when using stainless swagers and stainless sleeves properly.
Specification of series of Stainless Sleeve Swagers.
Cordless Stainless
Hydraulic Stainless
Electric Stainless
- □ Li-ion battery for Cordless Swagers.
- □ Output pressure is 11 tonf.Safety valve automatically operates when overloaded.
- □ Swaging capacity is dia 1.5mm wire to dia 6mm wire.
- □ Must use Stainless Sleeve Swagers with ARM Stainless Sleeves. This is essential.
- □ Less galvanic corrosion compared to using aluminum sleeves.
- □ Due to corrosion issue, we recommend using stainless wire ropes and stainless sleeves.
- □ Head turns 180 degrees. Easy to swage stainless sleeve on any angles.
- □ Making rigging wire ropes without electric facilities
(SHS-6HB) - □ Made in Japan!
 Product Safety |
・ARM-brand sleeves and swagers are designed and manufactured to be used together. (ARM Stainless Sleeve Swagers are for ARM Stainless Sleeve only. ・We will not guarantee the use of ther (non-ARM)brand sleeves/swagers with our products, and stronly advise against it. ・Refer t the specific sleeve technical data for detailed information relating to safety / destruction load. ・When swaging vinyle-sheathed wire rope, always retract sheathing to reveal wire rope before proceeding to swage. Otherwise, hanging strength can not be guaranteed. |
|---|
How to make a rigging wire rope Go ⇒
↓↓↓ Size and Safety load chart of ARM Stainless Sleeve) ↓↓↓
| Item No | ARM Stainless Sleeve |
wire rope dia mm inch |
Q'ty (bag) |
|---|---|---|---|
| SS-1.5 |  |
1.5 | 10 |
| SS-2.0 |  |
2.0 | 10 |
| SS-3.0 |  |
3.0 | 10 |
| SS-4.0 |  |
4.0 | 10 |
| SS-5.0 |  |
5.0 | 10 |
| SS-6.0 |  |
6.0 | 10 |
| SS-1/16 |  |
1/16 | 10 |
| SS-3/32 |  |
3/32 | 10 |
| SS-1/8 |  |
1/8 | 10 |
| SS-5/32 |  |
5/32 | 10 |
| SS-3/16 |  |
3/16 | 10 |
| SS-7/32 |  |
7/32 | 10 |
| SS-1/4 |  |
1/4 | 10 |
| Item No | Safety load using 2 wire ropes |
||
|---|---|---|---|
 |
|||
| SS-1.5 | 48kg | ||
| SS-2.0 | 82kg | ||
| SS-3.0 | 190kg | ||
| SS-4.0 | 244kg | ||
| SS-5.0 | 386kg | ||
| SS-6.0 | 480kg | ||
| SS-1/16 | 52kg | ||
| SS-3/32 | 99kg | ||
| SS-1/8 | 190kg | ||
| SS-5/32 | 260kg | ||
| SS-3/16 | 401kg | ||
| SS-7/32 | 540kg | ||
| SS-1/4 | 693kg | ||
| Item No | Wire rope destruction load Using ARM Stailess Sleeve Swagers |
Item No | |||||
|---|---|---|---|---|---|---|---|
| SS- HSC 2 |
SS- HSC3 /3BB |
SS- HS5 /5BB |
SS- HS 6BB |
Hyd tool |
|||
| SS-1.5 | 212kg |  |
○ | ○ | × | × | ○ |
| SS-2.0 | 330kg | ○ | ○ | × | × | ○ | |
| SS-3.0 | 731kg | × | ○ | × | × | ○ | |
| SS-4.0 | 1,255kg | × | × | ○ | × | ○ | |
| SS-5.0 | 1,898kg | × | × | ○ | × | ○ | |
| SS-6.0 | 2,704kg | × | × | × | ○ | ○ | |
| SS-1/16 | 269kg | ○ | ○ | × | × | ○ | |
| SS-3/32 | 555kg | × | ○ | × | × | ○ | |
| SS-1/8 | 822kg | × | ○ | × | × | ○ | |
| SS-5/32 | 1208kg | × | × | ○ | × | ○ | |
| SS-3/16 | 1683kg | × | × | ○ | × | ○ | |
| SS-7/32 | 2349kg | × | × | × | ○ | ○ | |
| SS-1/4 | 3100kg | × | × | × | × | ○ | |

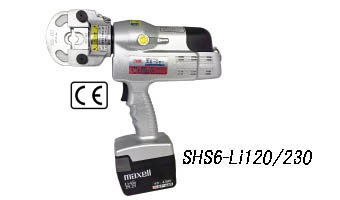

Cordless Stainless Sleeve Swager
- □ Swaging period of time:6 seconds
- □ Set includes
- Set of dies (SS-2D/SS-3D/SS-5D/
SS-6D) / Gauge / Shoulder strap - Wire rope cutter RC-450(cutting capacity φ12mm
/ - Li-ion battery BPL-2540:1pce
/ Battery charger BC0075G
| Item No | Wire rope diameter(mm),(inch) |
Output pressure tonf |
Weight kg |
Packing weight kg |
|---|---|---|---|---|
| SHS6-Li120/230 | 1.5, 2, 3, 4, 5, 6 1/16,3/32,1/8 5/32,3/16,7/32 |
10tonf | 6.5 | 16 |
| Stainless Sleeves for SHS6-Li120,230 mm-size |
||||||
|---|---|---|---|---|---|---|
| Item No | SS-1.5 | SS-2.0 | SS-3.0 | SS-4.0 | SS-5.0 | SS-6.0 |
| Wire Rope dia(mm) |
1.5 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 |
| Stainless Sleeves for SHS6-Li120,230 inch-size |
|||||||
|---|---|---|---|---|---|---|---|
| Item No | SS-1/16 | SS-3/32 | SS-1/8 | SS-5/32 | SS-3/16 | SS-7/32 | SS-1/4 |
| Wire Rope dia(mm) |
1/16" | 3/32" | 1/8" | 5/32" | 3/16" | 7/32" | 1/4" |

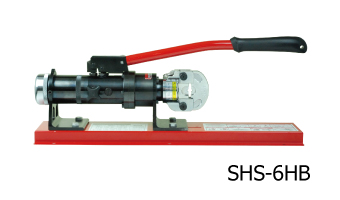

Hydraulic Stainless Sleeve Swager
- □ Set includes
- Set of dies(SS-2D/SS-3D/SS-5D/
SS-6D) / Gauge / Shoulder strap - Wire rope cutter RC-450(cutting capacity φ12mm
/
| Item No | Wire rope diameter |
Output pressure tonf |
Weight kg |
Packing weight kg |
|---|---|---|---|---|
| SHS- 6HB |
dia(mm)φ1.5, 2, 3, 4, 5, 6 |
12tonf | 15.5 | 25.1 |
| Stainless Sleeves for SHS6-HB |
||||||
|---|---|---|---|---|---|---|
| Item No | SS-1.5 | SS-2.0 | SS-3.0 | SS-4.0 | SS-5.0 | SS-6.0 |
| Wire Rope dia (mm) |
1.5 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 |
| Stainless Sleeves for SHS6-HB inch-size |
|||||||
|---|---|---|---|---|---|---|---|
| Item No | SS-1/16 | SS-3/32 | SS-1/8 | SS-5/32 | SS-3/16 | SS-7/32 | SS-1/4 |
| Wire Rope dia(mm) |
1/16" | 3/32" | 1/8" | 5/32" | 3/16" | 7/32" | 1/4" |

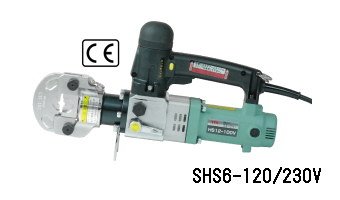

Electric Stainless Sleeve Swager
- □ Swaging period of time:4seconds
- □ Set includes
- Set of dies(SS-2D/SS-3D/SS-5D/
SS-6D) / Gauge / Shoulder strap - Wire rope cutter RC-450(cutting capacity φ12mm
/
| Item No | Wire rope diameter |
Output pressure tonf |
Weight kg |
Packing weight kg |
|---|---|---|---|---|
| SHS6-120/230V | dia(mm)φ1.5, 2, 3, 4, 5, 6 |
11tonf | 9.0 | 19.5 |
| Stainless Sleeves for HS12-120V,230V |
||||||
|---|---|---|---|---|---|---|
| Item No | SS-1.5 | SS-2.0 | SS-3.0 | SS-4.0 | SS-5.0 | SS-6.0 |
| Wire Rope dia (mm) |
1.5 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 |
| Stainless Sleeves for SHS6-120/230V inch-size |
|||||||
|---|---|---|---|---|---|---|---|
| Item No | SS-1/16 | SS-3/32 | SS-1/8 | SS-5/32 | SS-3/16 | SS-7/32 | SS-1/4 |
| Wire Rope dia(mm) |
1/16" | 3/32" | 1/8" | 5/32" | 3/16" | 7/32" | 1/4" |
