![Cordless, Electric Bolt cutter](../img/tool/cordless/bc16-demo.jpg)
Bolt Cutters
(Cordless
・Electric)
- □ 2 types of Bolt Cutters, one is Cordless, the other is Electric.
- □ Cutting capacity :dia 16mm Rebars, Hard steel bars dia 13mm.
- □ Essential tool for construction work. Some uses for rescue work.
- □ High reputation of cutting Container Seal of vessels, trucks. Also cutting hoist chains.
Specification of Bolt Cutters (Cordless , Electric)
- □ Material of blade is powder high speed steel with titanium coating.
- □ Blades' endurance is highly guaranteed.
- □ Output pressure for these cutters is 11 tonf.
- □ Once the pressure is too high, safety valve automatically operates.
- □ Head turns 180 degrees. Easy adjustment of placing the work onto cutting blades. Made in Japan!

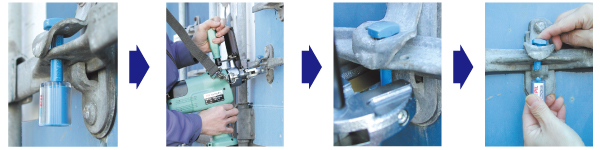

Cutting container seal of ocean vessel, trucks,any of container transportation.
![](../img/tool/cordless/con_01.png)
![](../img/tool/cordless/down.png)
![](../img/tool/cordless/con_02.png)
![](../img/tool/cordless/down.png)
![](../img/tool/cordless/con_03.png)
![](../img/tool/cordless/down.png)

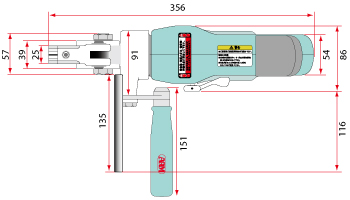

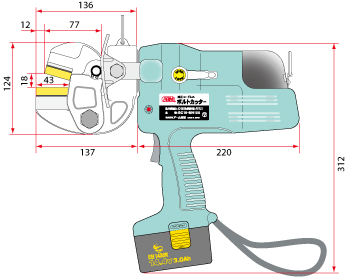

Size chart of Cordless Bolt Cutter(BC16-Li120/230)

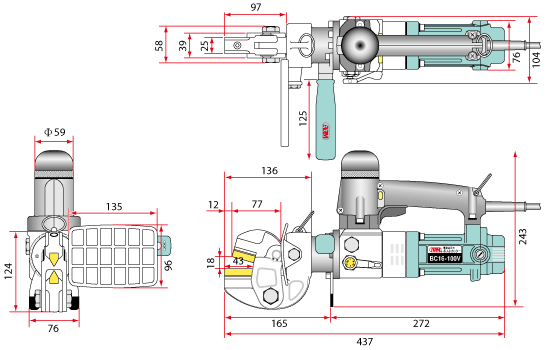

Size chart of Electric Bolt Cutter(BC16-120V/230V)
![cut a container seal](../img/tool/cordless/contena.jpg)
![](../img/tool/cordless/con_01.png)
![](../img/tool/cordless/down.png)
![](../img/tool/cordless/con_02.png)
![](../img/tool/cordless/down.png)
![](../img/tool/cordless/con_03.png)
![](../img/tool/cordless/down.png)
![](../img/tool/cordless/con_04.png)
![Bolt cutter diagram 1](../img/tool/cordless/bc16mh-size.jpg)
![Bolt cutter diagram 2](../img/tool/cordless/bc16mh-size2.jpg)
![Electric Bolt cutter diagram](../img/tool/cordless/bc16v-size.png)
Cordless Bolt Cutter (with Li-ion battery)
- □ Cutting period of time
- :5 seconds
- □ Cutting terms per a fully charged battery
- φ16mm rebars :210times / φ13mm rebars :305 times
- □ Set includes
- Spare blade set (BCCJ-16):2set(One with the unit)
/ Hand protector / Shoulder strap
Li-ion battery (BPL-2540):1pcs / Battery charger (BC0075G)
![Cordless Bolt cutter)](../img/tool/cordless/l-bc16li.jpg)
Item No | Cutting Capacity mm |
---|---|
BC16-Li120/230 | Rebar(SD490)φ16mm Hard steel(HRC30)φ13mm |
Output tonf | Weight (with battery)kg | Packing weight kg |
---|---|---|
11tonf | 7.1 | 13.5 |
![Cordless bolt cutter kit 1](../img/tool/cordless/bc16li-set1.jpg)
![Cordless bolt cutter kit 2](../img/tool/cordless/bc16li-set2.jpg)

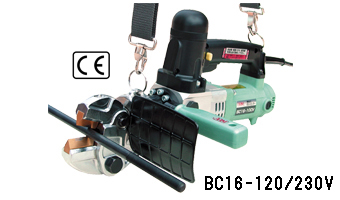

Electric Bolt Cutter
- □ Cutting period of time
- :4 seconds
- □ Set includes
- Spare blade set(BCCJ-16):2set(One with the unit)
/ Hand protector / Shoulder strap
/ Bolt Cutter (BC-350)
![Electric Bolt Cutter](../img/tool/cordless/l-bc16v.jpg)
Item No | Cutting Capacity mm |
---|---|
BC16-120/230V | Rebars (SD490)φ16mm Tempered Steel (Less HRC30)φ13mm |
Output tonf |
Weight kg |
Packing weight kg |
---|---|---|
11tonf | 8.1 | 14.5 |
![Electric Bolt Cutter 1](../img/tool/cordless/bc16v-set1.jpg)
![Electric Bolt Cutter 2](../img/tool/cordless/bc16v-set2.jpg)
