3. ARM Stainless Sleeve
Oval sleeve

ARM Stainless Sleeve

  • □ Stainless Sleeves to make rigging wire rope with ARM Brand Stainless Sleeve Swagers
  • □ Less galvanic corrosion is highly guaranteed.
  • □ Use these sleeves with indicated size of ARM Stainless Sleeve Swagers. Then hanging strength of the swaged sleeves and wire ropes are guaranteed.

Specification

Stainless sleeve SS-1.5-SS-6.0ARM
Stainless Sleeve
SS-1.5-SS-6.0,SS-1/16-SS-1/4,
(Made in Japan)
Aluminum oval sleeveAluminum Oval Sleeves
Go!!
  • □ Produce rigging wire ropes at any place.
  • □ Use Stainless Sleeve and Stainless Wire ropes together.
  • □ Use these sleeves with indicated size of ARM Stainless Sleeve Swagers together.
  • □ Less galvonic corrosion is guaranteed compared to alumunum ones.
  • □ Please remember that Even stainless material, it does get rusty little by little.
  • □ Made by ARM Sangyo Co.,Ltd , Made in Japan
How to make a rigging wire rope Go!! ⇒



Product Safety		 ・ARM-brand sleeves and swagers are designed and manufactured to be used together. (ARM Stainless Sleeve Swagers are for ARM Stainless Sleeve only.
・We will not guarantee the use of ther (non-ARM)brand sleeves/swagers with our products, and strongly advise against it.
・Refer t the specific sleeve technical data for detailed information relating to safety / destruction load.
・When swaging vinyle-sheathed wire rope, always retract sheathing to reveal wire rope before proceeding to swage. Otherwise, hanging strength can not be guaranteed.


↓↓↓  Size and Safety load chart of ARM Stainless Sleeve   ↓↓↓
Item No ARM
Stainless
Sleeve
 wire
rope
dia

mm
inch		 Q'ty
(bag)
SS-1.5 1.5 10
SS-2.0 2.0 10
SS-3.0 3.0 10
SS-4.0 4.0 10
SS-5.0 5.0 10
SS-6.0 6.0 10
SS-1/16 1/16 10
SS-3/32 3/32 10
SS-1/8 1/8 10
SS-5/32 5/32 10
SS-3/16 3/16 10
SS-7/32 7/32 10
SS-1/4 1/4 10
Item No Safety load
using 2 wire ropes
SS-1.5 48kg
SS-2.0 82kg
SS-3.0 190kg
SS-4.0 244kg
SS-5.0 386kg
SS-6.0 480kg
SS-1/16 52kg
SS-3/32 99kg
SS-1/8 190kg
SS-5/32 260kg
SS-3/16 401kg
SS-7/32 540kg
SS-1/4 693kg
Item No Wire rope
destruction load
Using ARM
Stailess Sleeve
Swagers		 Item No
SS-
HSC
2		 SS-
HSC3
/3BB		 SS-
HS5
/5BB		 SS-
HS
6BB		 Hyd
tool
SS-1.5 212kg ○ ○ × × ○
SS-2.0 330kg ○ ○ × × ○
SS-3.0 731kg × ○ × × ○
SS-4.0 1,255kg × × ○ × ○
SS-5.0 1,898kg × × ○ × ○
SS-6.0 2,704kg × × × ○ ○
SS-1/16 269kg ○ ○ × × ○
SS-3/32 555kg × ○ × × ○
SS-1/8 822kg × ○ × × ○
SS-5/32 1208kg × × ○ × ○
SS-3/16 1683kg × × ○ × ○
SS-7/32 2349kg × × × ○ ○
SS-1/4 3100kg × × × × ○
  • To swage stainless sleeves, we have Cordless, Electric, Hydraulic Swager (hand operated).
    They are all operated by the hydraulic system.
For Aluminum Oval Sleeves  Go!! ⇒

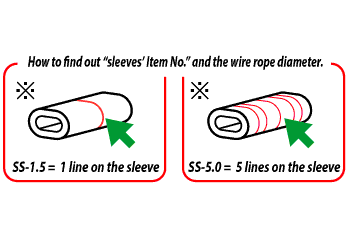

How to identify oval sleeve SS-HSC pulling test
↓↓↓  How often do you swage with swagers below?   ↓↓↓
See the following chart!!
SS-HSC swaging



ARM Stainless Sleeves (1.5mm-6.0mm, 1/16"-1/4")

  • □ Wire rope diameter(mm):1.5/2.0/3.0/4.0/5.0/6.0, (inch):1/16,3/32,1/8,5/32,3/16,7/32,1/4
  • □ Material:Stainless
  • □ Select appropriate ARM Stainless Sleeves and Swagers following to wire rope diameter.
  • 　 ・SS-1.5,SS-2.0,SS-1/16" be swaged withSS-HSC2／SS-HSC3／SS-HSC3BB
  • 　 ・SS-3.0, SS-3/32", SS-1/8" be swaged withSS-HSC3／SS-HSC3BB
  • 　 ・SS-4.0,SS-5.0, SS-5/32",SS-3/16" be swaged withSS-HS5／SS-HS5BB
  • 　 ・SS-6.0, SS-7/32" be swaged withSS-HS6BB
  • 　 ・SS-1/4" be swaged with SHS-6HB,SHS6-10/230V,SHS-6Li120/230
  • 　 ・Cordless,Electric, Hand operated hydraulic swagers can swage SS-1.5-SS-6.0 ,SS-1/16-SS-1/4 all sizes of stainless sleeve.
    Item No.SHS-6HB    ／SHS6-120/230V／SHS6-Li120/230
For Aluminum Oval Sleeves Go!! ⇒


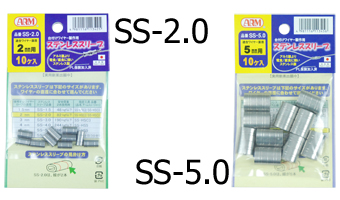

SS-2.0,SS-5.0-1.5-6.0
Item No Length
mm		 Q'ty
(per a bag)		 Wire rope dia
mm,inch		 weight
(g)
SS-1.5 12 10 1.5 25
SS-2.0 12 10 2.0 23
SS-3.0 15 10 3.0 59
SS-4.0 20 10 4.0 126
SS-5.0 22 10 5.0 126
SS-6.0 32 10 6.0 217
SS-1/16 23 10 1/16" 25
SS-3/32 15 10 3/32" 61
SS-1/8 15 10 1/8" 53
SS-5/32 20 10 5/32" 130
SS-3/16 22 10 3/16" 140
SS-7/32 32 10 7/32" 250
SS-1/4 32 10 1/4" 250
