![Cordless, Electric wire rope cutters](../img/tool/cordless/wrc20-demo.jpg)
Cordless, Electric , Hydraulic
Wire Rope Cutters
- □ Can cut dia 20mm Steel Core Wire ropes.
- □ The wires to be cut : (JIS G3525 IWRC 6 X Fi(29))
- □ Examples of of usage: To replace ropes at the lift, elevators. Cutting wire rope of highways, Cutting purpose of standard wire ropes.
- □ Battery : Li-ion battery.
Spfication of wire rope cutters
- □ Output pressure : 10tonf
- □ Blade is made of powder high speed steel with titanium coating.
- □ Due to the material and coating, endurance of blade is highly guaranteed.
- □ Head turns 180 degrees.
- □ Cutting capacity of wire rope is dia 20mm
- □ These are made by ARM Sangyo, and Made in Japan products.

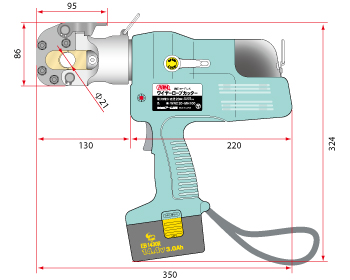

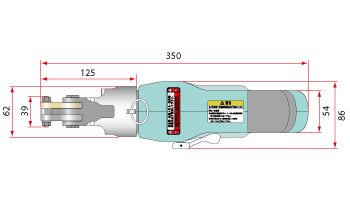

Size chart of Cordless Wire Rope Cutter
(WRC20-Li120/230)
(WRC20-Li120/230)
![size diagram of cordless wire rope cutter](../img/tool/cordless/wrc20mh-size.jpg)
![size diagram of cordless wire rope cutter 2](../img/tool/cordless/wrc20mh-size2.jpg)

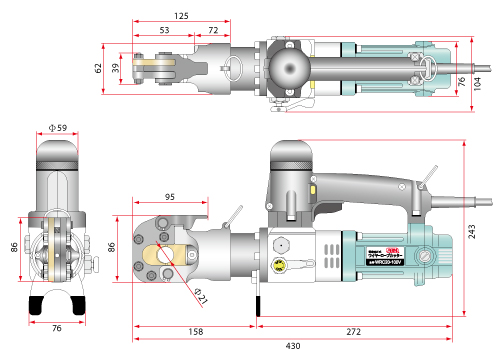

Size chart of Electric Wire Rope Cutter
(WRC20-120,230V)
(WRC20-120,230V)
![size diagram of electric wire rope cutter](../img/tool/cordless/wrc20v-size.jpg)

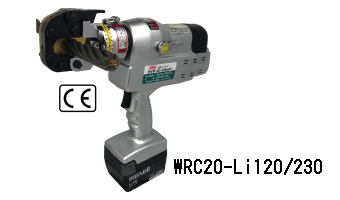

Cordless Wire Rope Cutter WRC20-Li120/230.
- □ Cutting period of time :5 seconds
- □ With fully charged battery cuts 170 times
- □ Cutting capacity : dia 20mm wire rope with steel core.
- □ Set includes
- Wire rope cutter RC-450 Cutting capacity dia 12mm
/ Shoulder Strap - Li-ion battery (BPL-2540):1pce / Battery charger (BC0075G)
![Cordless wire rope cutter](../img/tool/cordless/l-wrc20li.jpg)
Item No | Cutting capacity mm |
Output tonf |
weight kg |
Packing weight kg |
---|---|---|---|---|
WRC20-Li120/230 | Steel core wire rope dia20mm (JIS G3525 IWRC 6×Fi(29)) |
10tonf | 5.9 | 13 |
![](../img/tool/cordless/wrc20li-set1.jpg)
![](../img/tool/cordless/wrc20li-set2.jpg)

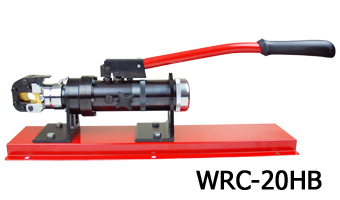

Hydraulic Wire Rope Cutter (Bench mounted type)
- □ Set includes
- Wire rope cutter RC-450 Cutting capacity dia 12mm
/ Shoulder Strap
![Hydraulic wire rope cutter bench mounted type](../img/tool/cordless/l-wrc-20hb.jpg)
Item No | Cutting capacity mm |
Output tonf |
weight kg |
Packing weight kg |
---|---|---|---|---|
WRC20-HB | Steel core wire rope dia20mm (JIS G3525 IWRC 6×Fi(29)) |
10tonf | 15.3 | 20 |
![a set of electric wire rope cutter](../img/tool/cordless/wrc20v-set1.jpg)
![a set of cordless wire rope cutter](../img/tool/cordless/hs12hb-set2.jpg)

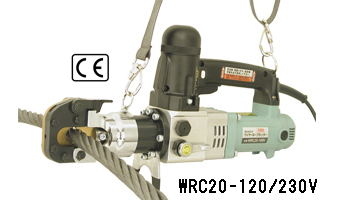

Electric Wire Rope Cutter
- □ Cutting period of time :5 seconds
- □ Set includes
- Wire rope cutter RC-450 Cutting capacity dia 12mm
/ Shoulder Strap
![Electric wire rope cutter](../img/tool/cordless/l-wrc20v.jpg)
Item No | Cutting capacity mm |
Output tonf |
weight kg |
Packing weight kg |
---|---|---|---|---|
WRC20-120/230V | Steel core wire rope dia20mm (JIS G3525 IWRC 6×Fi(29)) |
10tonf | 7.1 | 13 |
![](../img/tool/cordless/wrc20v-set1.jpg)
![](../img/tool/cordless/wrc20v-set2.jpg)
